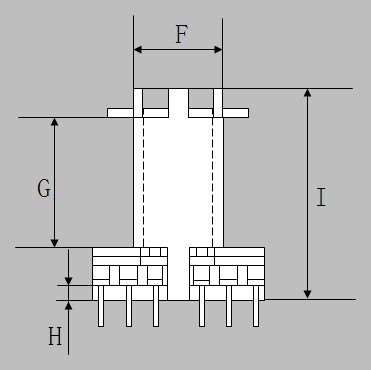

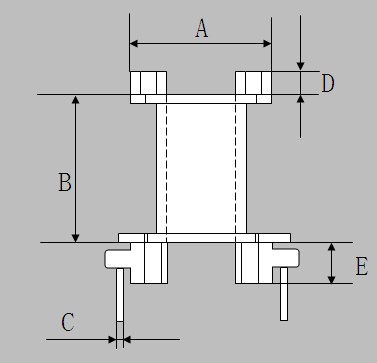

SPECIFICATION(mm) | |||||||||
TYPE | A | B | C | D | E | F | G | H | I |
PQ2016 | - | 9.90 | 0.60 | 3.00 | 1.60 | 11.20 | 7.90 | - | 18.10 |
PQ2020 | 16.50 | 13.80 | 3.30 | 3.70 | 5.70 | - | 11.80 | 1.50 | 23.70 |
PQ2620 | 21.80 | 10.95 | 0.60 | - | 5.50 | 14.20 | 9.05 | 3.00 | 20.55 |
PQ2625 | 21.80 | 15.60 | 0.60 | 4.00 | 5.50 | 14.40 | 13.70 | 3.00 | 25.20 |
PQ3220 | 27.00 | 11.00 | 0.80 | 3.90 | 7.00 | 16.00 | 9.00 | 3.00 | 21.90 |
PQ3225 | 27.00 | 15.90 | 0.80 | 3.90 | 7.00 | 16.00 | 13.90 | 3.00 | 26.80 |
PQ3535 | 31.30 | 24.30 | 1.00 | 5.50 | 7.40 | 16.90 | 20.80 | 2.10 | 37.20 |
PQ4040 | 36.00 | 28.60 | 0.80 | 5.50 | 7.00 | 17.40 | 26.60 | 1.50 | 41.00 |

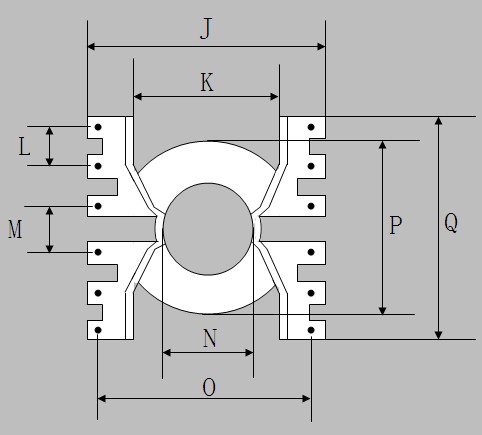

TYPE | J | K | L | M | N | O | P | Q | |
PQ2016 | 23.00 | 14.70 | 3.80 | 5.00 | 9.20 | 20.30 | - | 23.00 | |
PQ2020 | 23.00 | 14.70 | 3.80 | 5.08 | 9.30 | 20.30 | 17.40 | 23.00 | |
PQ2620 | 29.00 | 20.00 | 3.80 | 7.60 | 12.40 | 25.50 | 21.30 | 27.00 | |
PQ2625 | 29.00 | 20.00 | 3.80 | 7.60 | 12.40 | 25.50 | 21.30 | 27.00 | |
PQ3220 | 34.20 | 22.50 | 5.00 | 7.50 | 14.00 | 30.00 | 26.80 | 32.00 | |
PQ3225 | 34.20 | 22.50 | 5.00 | 7.50 | 14.00 | 30.00 | 26.80 | 32.00 | |
PQ3535 | 39.10 | 26.80 | 5.10 | 10.20 | 14.75 | 35.60 | 31.00 | 35.20 | |
PQ4040 | 42.00 | - | 5.00 | 15.10 | 15.40 | 38.00 | - | 39.90 | |
Above items are our nomal type. The products can be customized by customer's requirement, welcome to your consulting.
